R A Medical — Scavenging
Miniscav Active Scavenger Unit
Compact active scavenger unit for medical environments. CE marked to IEC 60601-1:2005. Requires 240V power socket and 16mm external wall vent.
Key Features
- Compact active scavenger unit
- CE marked to IEC 60601-1:2005
- 1-metre 15mm transfer hose with quick-fit connections
- Rigid external waste vent assembly included
- 2-metre power lead included
- Requires active breathing system (40-45 L/min at nasal mask)
- Requires 240V power socket and 16mm external wall vent

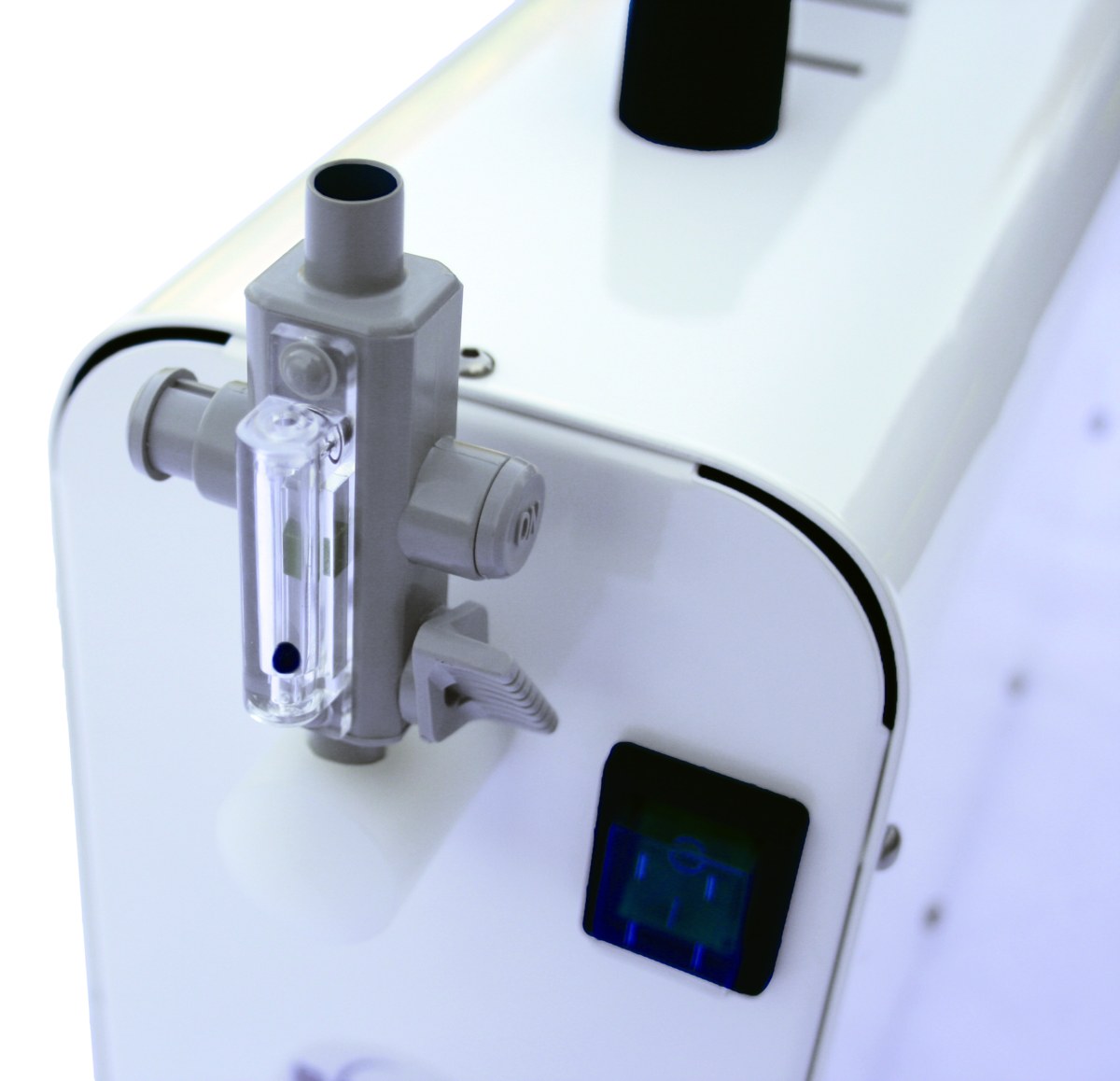

The Miniscav Active Scavenger Unit is a compact, CE marked active scavenging unit designed for efficient and reliable waste gas management in medical and dental environments. Supplied with a 1-metre 15mm flexible transfer hose assembly with quick-fit connections, a rigid external waste vent assembly, and a 2-metre power lead. Requires a standard 240V power socket and a 16mm external wall vent. Note: an active breathing system capable of 40-45 L/min air flow at the nasal mask is required — it will not work with passive corrugated hose systems.
Price
Valid 1 Sept 2025 – 1 Sept 2026
£1,430.00ex VAT
Part No: RA2070
Need advice? Speak to our specialist team.
Technical Specifications
- Type
- Active Scavenger Unit
- Dimensions
- 160mm (W) x 320mm (L) x 250mm (H)
- Weight
- 9.25 kg
- Power
- 240V
- Hose
- 1m 15mm flexible transfer hose
- Required Flow Rate
- 40-45 L/min at nasal mask (active system required)
- Certification
- CE marked, IEC 60601-1:2005
